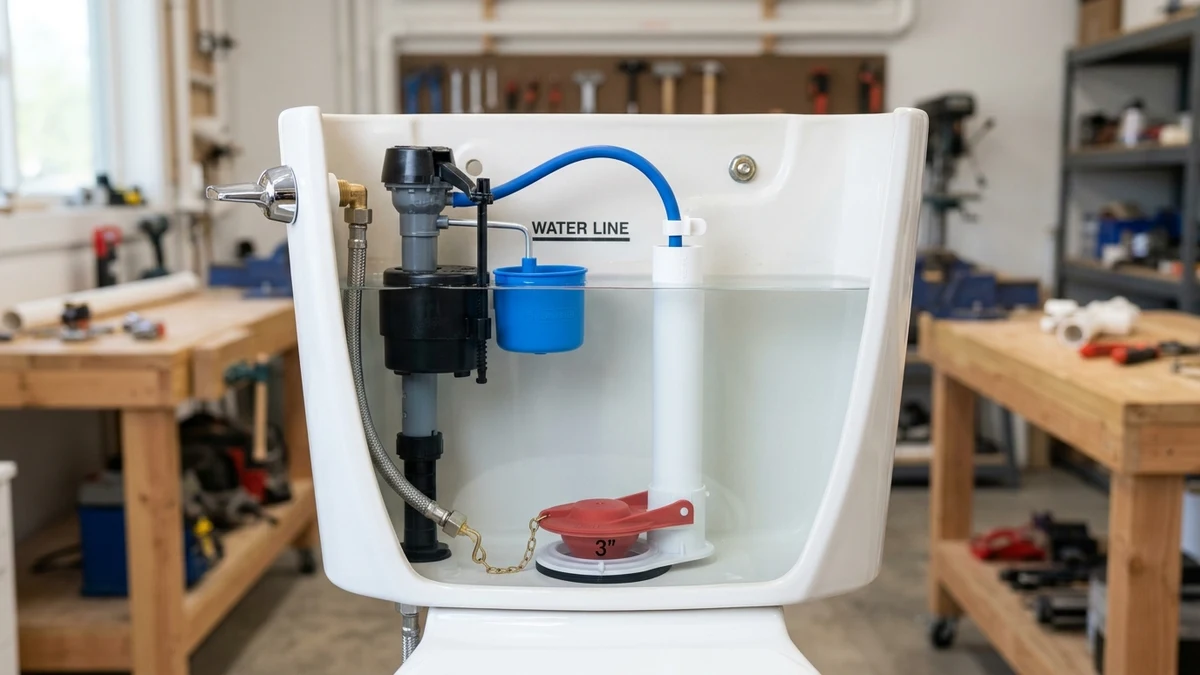

Toilet Repair Diagnostic Guide & Fill Valve Sizing Engine
A continuously running toilet is most commonly caused by a worn rubber flapper, an incorrectly adjusted float level, or mineral debris clogging the fill valve diaphragm. Replacing the flapper and installing a modern universal fill valve (such as the Fluidmaster 400A or PRO45) resolves 90% of running toilet issues.
View Fluid Mechanics Diagnostic Logic
Phantom Flush = Slow tank seepage lowers float → triggers 4-second refillContinuous Hiss = Float set above overflow tube lip OR torn diaphragm valveBase Leak = Failed wax ring seal OR loose closet bolts (2.0 PSI surge)Gurgling = Partial sewer main clog OR blocked rooftop plumbing vent stack
Toilet Diagnostic Fault & Replacement Component Matrix
| Auditory / Visual Symptom | Root Cause Fault | Recommended OEM Part | Est. DIY Cost | Repair Time |
|---|---|---|---|---|
| Intermittent Hiss (15–30m) | Warped Flapper Micro-Leak | Korky Plus 2" / Fluidmaster 502 | $8 – $12 | 10 Minutes |
| Constant Overflow Hiss | Float Set High / Torn Diaphragm | Fluidmaster 400A / PRO45 Valve | $14 – $22 | 25 Minutes |
| Water Puddling at Base | Wax Ring Rupture / Loose Bolts | Danco Perfect Seal / Oatey Ring | $9 – $18 | 45 Minutes |
| High-Pitched Whine on Refill | Mineral-Calcified Valve Core | Fluidmaster 242 Replacement Seal | $4 – $8 | 15 Minutes |
Interactive Toilet Leak Symptom & Sound Diagnostic Tree
Phantom Flushing: Dye Test Protocol for Flapper Micro-Leaks
The mysterious "phantom flush"—where a quiet bathroom toilet suddenly starts running for 4 seconds in the middle of the night—wastes up to 200 gallons of treated potable water per day. This occurs because the rubber flapper or silicone canister seal seated at the bottom of the tank has degraded from municipal chlorine.
As water imperceptibly leaks around the flapper into the bowl rim jets, the tank water level gradually drops. Once the float cup drops below the threshold, the fill valve opens automatically to replenish the reservoir. The food coloring dye test provides 100% empirical verification in 20 minutes without tools. For whole-home troubleshooting, use the plumbing diagnostic triage selector.
Water Leaking from Base: Wax Ring Failure vs Loose Flange Bolts
When clean or dirty water puddles onto bathroom tile around the toilet base after flushing, the wax seal between the toilet horn and the closet flange has failed. Standard wax rings form a watertight seal only when the toilet is bolted firmly to the subfloor with zero movement.
If a toilet rocks even 1/8-inch due to an uneven floor or loosened closet bolts, the non-resilient wax compresses and creates a permanent gap. Wastewater then seeps out beneath the base. In severe cases with improper drain slope, wastewater backs up due to poor toilet soil stack slope and wet venting, soaking the subfloor framing.
Statutory Plumbing Code & Engineering Citations
| Authority / Standard | Code Section | Statutory Tolerance / Parameter |
|---|---|---|
| ASME / CSA | ASME A112.19.2 / CSA B45.1 | Vitreous china water closets performance and hydraulic flushing standards |
| ASSE International | ASSE 1002 / ANSI A112.1002 | Anti-siphon fill valve backflow prevention standards for residential gravity tanks |
| U.S. EPA | EPA WaterSense Spec 1.28 GPF | High-efficiency toilet flush volume certification and flush valve throat sizing |
| International Code Council | IPC Section 420 | Water closet rough-in clearance: 15" minimum from center to side walls; 21" in front |
