Shower Valve Stem Identification Guide & Faucet Cartridge Diagnostic Engine

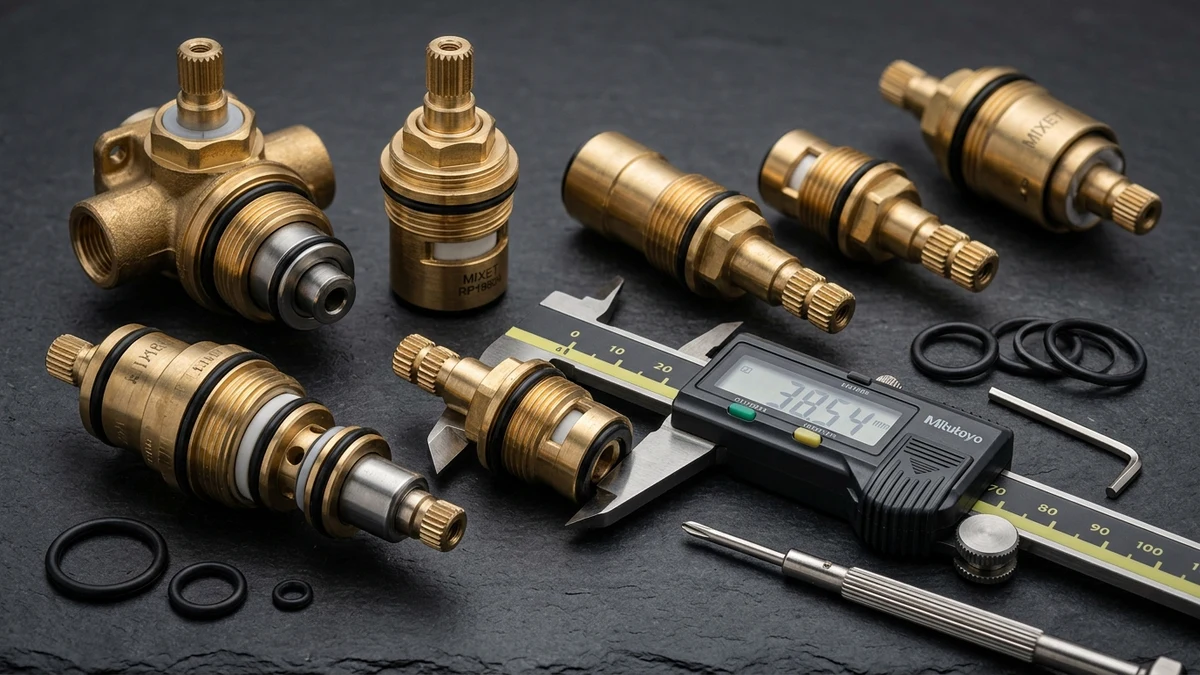

To identify an unknown shower valve stem, count the number of splines (teeth) on the broach tip, measure the overall stem length, and check the handle rotation mechanism. A 12-spline stem indicates Moen, while 16 splines indicate American Standard and 20 splines indicate modern Kohler or Price Pfister valves.
View Broach Specification Standards
Moen: 12 splines, 0.370" broach dia (Posi-Temp 1222, Standard 1225)Kohler: 20 splines, 0.385" broach dia (Rite-Temp GP76851 / GP77759)American Standard: 16 splines, 0.375" broach dia (Nu-Seal A954440)Delta: D-Flat cam with stainless ball or RP19804 / RP46074 core
Master Shower Stem Broach Tooth Identification Matrix
| Broach Splines | Diameter | Primary Brand | Common OEM Part Number | Balancing Spool Type |
|---|---|---|---|---|
| 12 Splines | 0.370" | Moen / Mixet | 1222 Posi-Temp / 1225 Brass | Integrated in Cartridge |
| 16 Splines | 0.375" | American Standard / Sayco | Nu-Seal A954440 / Reliant | Ceramic Disc Core |
| 18 Splines | 0.375" | Sterling / Crane | Sterling A8000 / Dial-Eze | Integral Compression |
| 20 Splines | 0.385" | Kohler / Price Pfister | Rite-Temp GP76851 / 910-0130 | Separate Balancing Unit |
| 24 Splines | 0.375" | Symmons / Central | Temptrol TA-10 Spindle | Internal Piston Core |
| Smooth / D-Flat | 0.312" | Delta / Peerless | RP19804 / RP46074 MultiChoice | Rotational Limit Stop |
Interactive Shower Valve Stem & Cartridge Identification Matrix
Spline Counting & Broach Measurement Reference Guide
Plumbing fixture manufacturers engineer proprietary broach tips to guarantee that replacement handles seat firmly without slippage. The gear teeth (splines) on the stem tip follow strict industry geometries: Moen standardizes on 12 splines with a 0.370-inch diameter, while American Standard utilizes 16 splines at 0.375 inches.
Kohler Rite-Temp and Price Pfister utilize 20 splines at 0.385 inches, whereas Delta handles employ a smooth stem with dual flat sides (D-Flat or Double-D cam). Measuring overall length from the broach tip to the base gasket confirms whether you have a standard single-handle cartridge or an elongated two-handle diverter stem. When upgrading your heating system, verify your tankless water heater temperature rise so delivered shower water reaches code minimums.
Dripping Shower Head When Off: Spool vs Cartridge O-Ring Failure
When a shower head continues to drip steady drops after the handle is shut off, homeowners frequently suspect a faulty showerhead. However, showerheads contain no shutoff valves; water is escaping past the internal cartridge seal.
In modern pressure-balanced valves (such as the Moen 1222 or Kohler GP76851), water isolation depends on precision rubber O-rings seated against a micro-machined brass sleeve. Mineral etching or chlorine embrittlement allows continuous cold or hot leakage. If water pressure fluctuates and the shower turns scalding when a nearby toilet flushes, the internal stainless steel pressure-balancing spool has seized from hard water scale and must be replaced. Always maintain proper drainage slope with your tub spout height and trap arm pitch.
Statutory Plumbing Code & Engineering Citations
| Authority / Standard | Code Section | Statutory Tolerance / Parameter |
|---|---|---|
| ASSE International | ASSE 1016 / ASME A112.1016 | Performance requirements for automatic compensating shower valves and balancing spools |
| ASME / CSA | ASME A112.18.1 / CSA B125.1 | Plumbing supply fittings dimensional tolerances and spline broach standards |
| NSF International | NSF/ANSI 61 Annex G | Lead-free brass composition (≤0.25% weighted lead content) for drinking water contact |
| International Code Council | IPC Section 424.3 | Mandatory pressure-balancing or thermostatic mixing valve scald prevention at 120°F |
