Drain Pipe Pitch Calculator & Clog Remediation Chemical Safety Engine
According to the International Plumbing Code (IPC 704.1), horizontal drainage pipes 2 inches or smaller require a minimum downward pitch of 1/4 inch per linear foot (2% slope). Pipes 3 to 6 inches require a 1/8 inch per foot pitch to ensure solids remain suspended in wastewater flow without settling.
View IPC Hydraulic Derivation & Formulas
Total Drop (Δh) = Run Length (ft) × Pitch (in/ft)Slope % = (Total Drop in inches) / (Run Length in inches) × 100IPC Minimum: 1/4"/ft for ≤2" lines; 1/8"/ft for ≥4" linesMaximum Threshold: > 1/2"/ft risks water outrunning solids
IPC Table 704.1 Minimum Slope & Drainage Capacity Reference
| Nominal Pipe Size | Min Slope (in/ft) | Slope Grade (%) | Max DFU (Horizontal) | Common Fixtures |
|---|---|---|---|---|
| 1¼" (32 mm) | 1/4" / ft | 2.08% | 1 DFU | Lavatory Basins, Drinking Fountains |
| 1½" (38 mm) | 1/4" / ft | 2.08% | 3 DFU | Bathtubs, Kitchen Sinks, Laundry Tubs |
| 2" (50 mm) | 1/4" / ft | 2.08% | 6 DFU | Showers, Washing Machines, Floor Drains |
| 3" (75 mm) | 1/8" / ft | 1.04% | 20 DFU | Water Closets (Toilets), Soil Stacks |
| 4" (100 mm) | 1/8" / ft | 1.04% | 160 DFU | Main Building Drain, Sewer Laterals |
Interactive Drainage Pitch, Run Drop & Pipe Sizing Calculator
The Velocity Rule: Why Over-Steep Slopes Cause Dry Solids Clogs

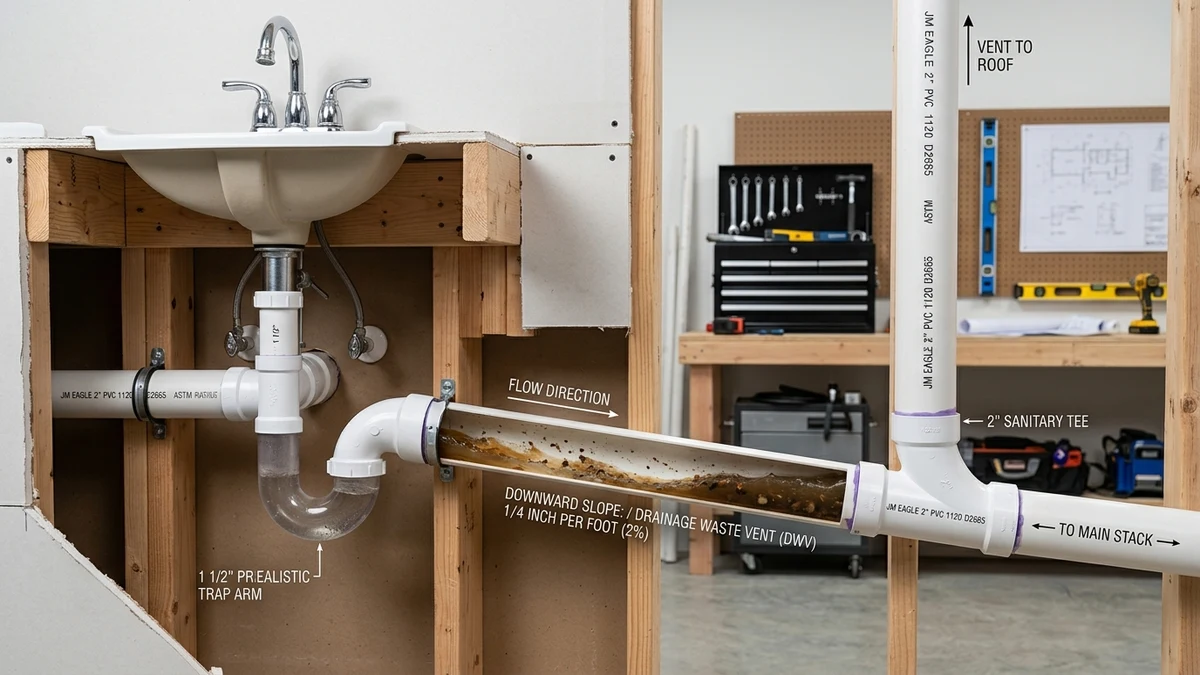

Plumbing drainage systems rely on gravity-assisted hydraulic scouring. Water must flow through horizontal pipes at a self-cleaning velocity between 2.0 and 4.0 feet per second. When horizontal runs are pitched correctly at 1/4-inch per foot, water creates a buoyant rolling hydraulic wave that carries suspended toilet solids and grease paper toward the sanitary tee.
If a handyman installs a drain with excessive slope (such as 3/4-inch or 1-inch per foot), the water rushes down the invert too quickly, outrunning the slower-moving solid waste. The stranded solids adhere to the dry pipe walls, hardening into chronic blockages. Maintain precise grade when connecting your shower drain removal and p-trap pitch.
Chemical Drain Cleaner Safety & Pipe Material Compatibility
Commercial 93% virgin sulfuric acid drain cleaners react violently with moisture, generating intense exothermic heat exceeding 190°F (88°C). While heavy unlined cast iron withstands this thermal shock, Schedule 40 PVC and ABS thermoplastic pipes possess a Vicat softening point of 140°F (60°C).
When dumped into a standing trap, concentrated acid softens the thinwall tubular slip-joint plastic, causing chemical weld breaches, floor flooding, and noxious sulfur dioxide fumes. For organic hair and soap blockages, professional plumbers mandate mechanical cable augers or enzymatic bacterial maintenance cultures. Always check your toilet soil stack slope before securing subfloor hangers.
Statutory Plumbing Code & Engineering Citations
| Authority / Standard | Code Section | Statutory Tolerance / Parameter |
|---|---|---|
| International Code Council (ICC) | IPC Table 704.1 | Minimum 1/4"/ft pitch for ≤2" pipe; 1/8"/ft pitch for 3"–6" drainage pipe |
| IAPMO | UPC Table 702.1 | Drainage Fixture Unit (DFU) discharge limits by pipe nominal diameter |
| ASTM International | ASTM D2665 | Schedule 40 PVC DWV Vicat softening thermal limit (140°F / 60°C) |
| ASTM International | ASTM F409 | Thermoplastic and ABS slip-joint tubular drainage fitting mechanical standards |
